Salt Spray Test for Stainless Steel Tubes

The salt spray test for stainless steel tubes is a common accelerated corrosion test used to evaluate the corrosion resistance of stainless steel materials. This test mainly examines the performance of the protective surface layer of stainless steel tubes when exposed to a salt-containing environment.

1. Purpose of the Test

The salt spray test simulates the corrosion conditions found in marine or industrial salt environments to assess whether stainless steel tubes have adequate corrosion resistance. This test allows for a quick evaluation of the effectiveness of protective coatings, surface treatments, or differences in corrosion resistance between different types of stainless steel.

2. Testing Standards

Commonly used salt spray test standards include:

• ASTM B117: A widely used international standard that specifies the method for conducting salt spray tests.
• GB/T 10125: A Chinese national standard that provides detailed procedures and requirements for salt spray corrosion tests.
• ISO 9227: A standard from the International Organization for Standardization (ISO) outlining salt spray testing methods.

3. Test Principle

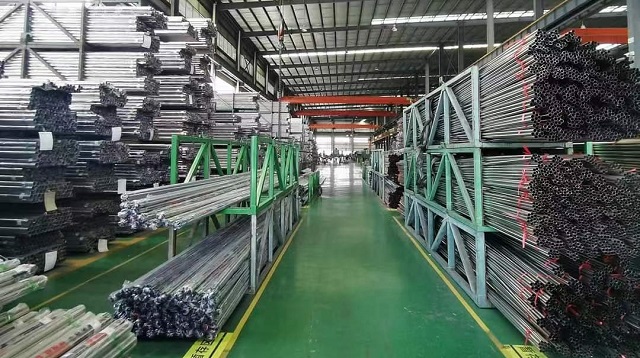

Miscellaneous stainless steel tubes available in stock.

The salt spray test is conducted in a closed chamber, where a spray of sodium chloride (NaCl) solution creates a salt mist environment that simulates exposure to high-salinity conditions. The typical solution used is 5% NaCl solution, with a pH between 6.5 and 7.2. The test samples are placed in the chamber, with test durations ranging from a few hours to hundreds of hours, depending on the testing standard and customer requirements.

4. Test Procedure

• Sample Preparation: Stainless steel tubes, either seamless or welded, are cut into test pieces as specified, and the surfaces are cleaned and treated under certain conditions (if needed).
• Preparation of Salt Spray Solution: Typically, a 5% sodium chloride solution is used to simulate a marine corrosion environment.
• Control of Test Environment: The temperature in the test chamber is maintained at around 35°C, and the relative humidity is kept close to 100% to ensure the continuity and uniformity of the salt mist.
• Test Process: The testing specimens are placed in the salt spray chamber and exposed for the required time, which may range from 24, 48, 96, or even up to 1000 hours, depending on the testing objective.
• Periodic Inspection: During the test, the samples are periodically inspected for signs of corrosion spots, pitting, or other corrosion marks.

5. Test Results

After the test is completed, the samples are removed, cleaned, and inspected. The results are usually evaluated based on the following:

• Corroded Area: The percentage of the sample surface that is corroded.
• Corrosion Depth: The depth of corrosion spots or pitting.
• Surface Appearance: Whether the corrosion is uniform and if there are severely corroded local areas.

Based on the testing standard or customer requirements, it is determined whether the stainless steel tube passes the salt spray test and meets the corrosion resistance criteria.

6. Factors Affecting the Test

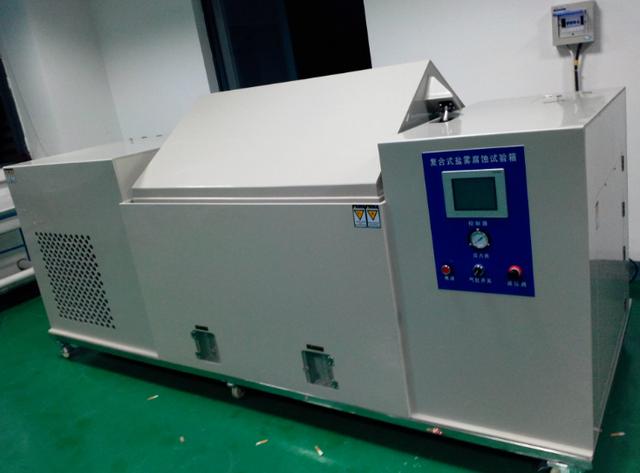

The salt spray test equipment for stainless steel tubes in the mill.

• Alloy Composition of Stainless Steel: Stainless steels with higher chromium, nickel, and molybdenum content exhibit better corrosion resistance. For example, 316L stainless steel generally performs better than 304 stainless steel in salt spray tests.
• Surface Treatment: Different surface treatments of stainless steel, such as polishing or electroplating, can also affect corrosion resistance.
• Test Duration and Environmental Conditions: The longer the exposure time, the more pronounced the corrosion. Therefore, the test duration should be reasonably set based on the actual service environment.

7. Limitations of the Salt Spray Test

Although the salt spray test can simulate a corrosive environment in a short period, it does not fully replicate real-world corrosion conditions. The test environment is relatively simple and cannot simulate complex conditions such as alternating wet and dry environments or chemical corrosion. Therefore, it is generally used as a preliminary evaluation method rather than a definitive predictor of material longevity. Through the salt spray test, the corrosion resistance of stainless steel tubes can be quickly assessed, helping to select materials suitable for various corrosive environments.
